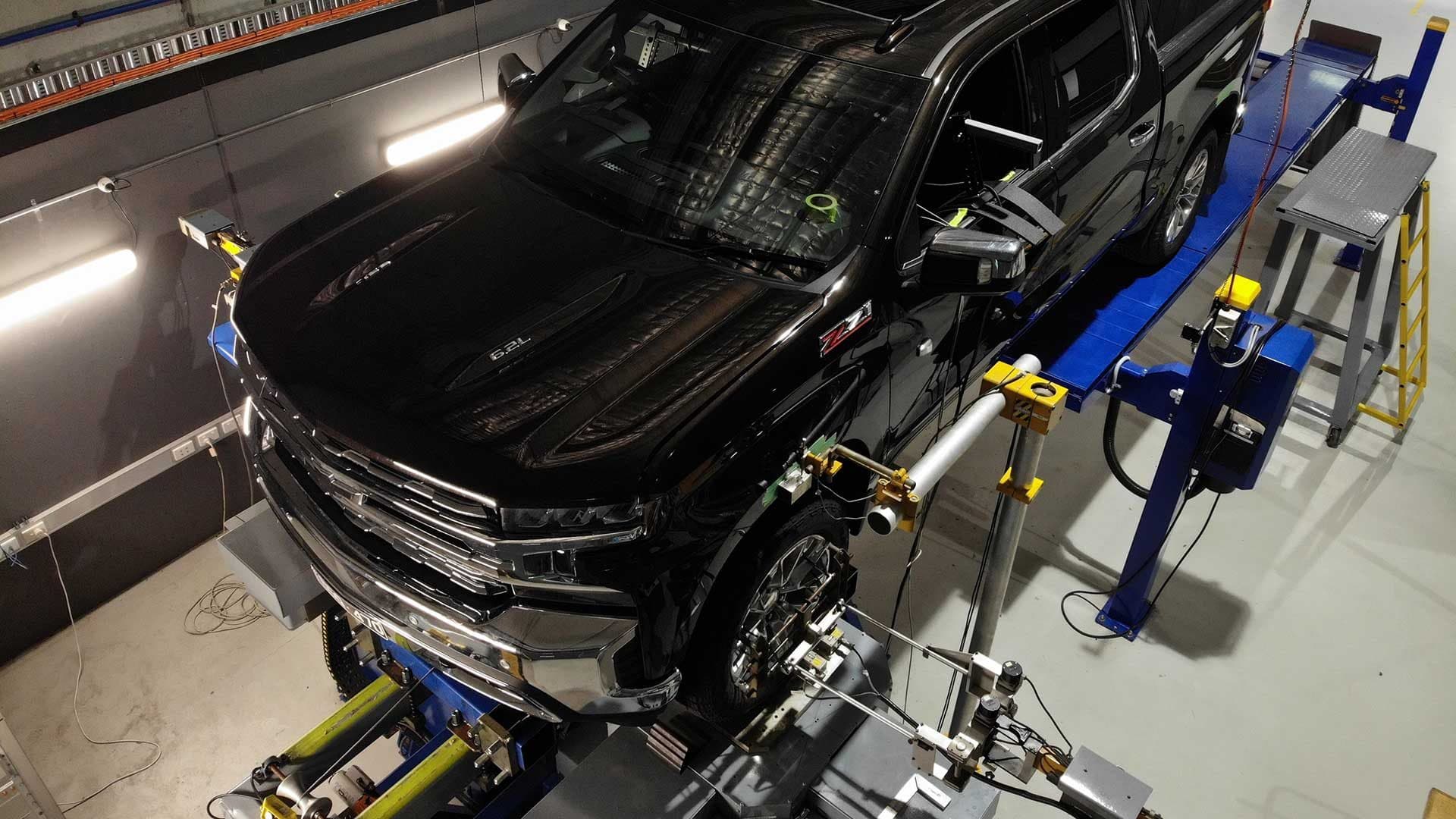

Kinematics & Compliance Testing

Suspension performance, defined.

Kinematics and Compliance (K&C) rig

K&C testing is used to evaluate suspension system performance of road and race vehicles.

Kinematics – measurement of the articulation of a vehicle’s wheels due to its suspension geometry.
Compliance – measurement of the deflection, under load, of a vehicle’s wheels (reflecting the stiffness of its various metallic and elastomeric suspension components).

K&C applications:

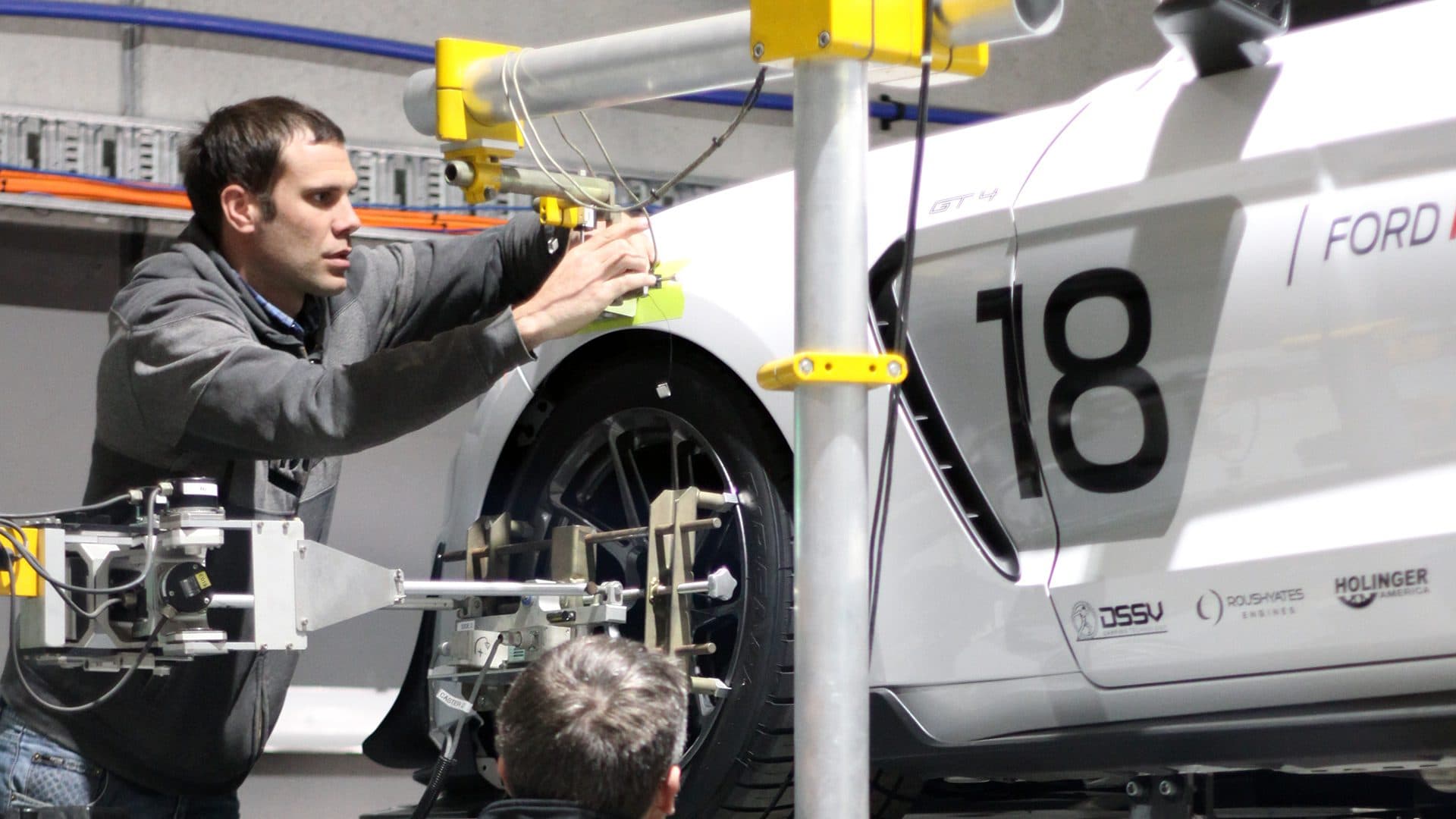

Kinematics and Compliance (K&C) rig

Vehicle Architecture Development
Assessing new vehicle suspension performance targets and characteristics.

Multimatic’s dedicated K&C testing facilities:

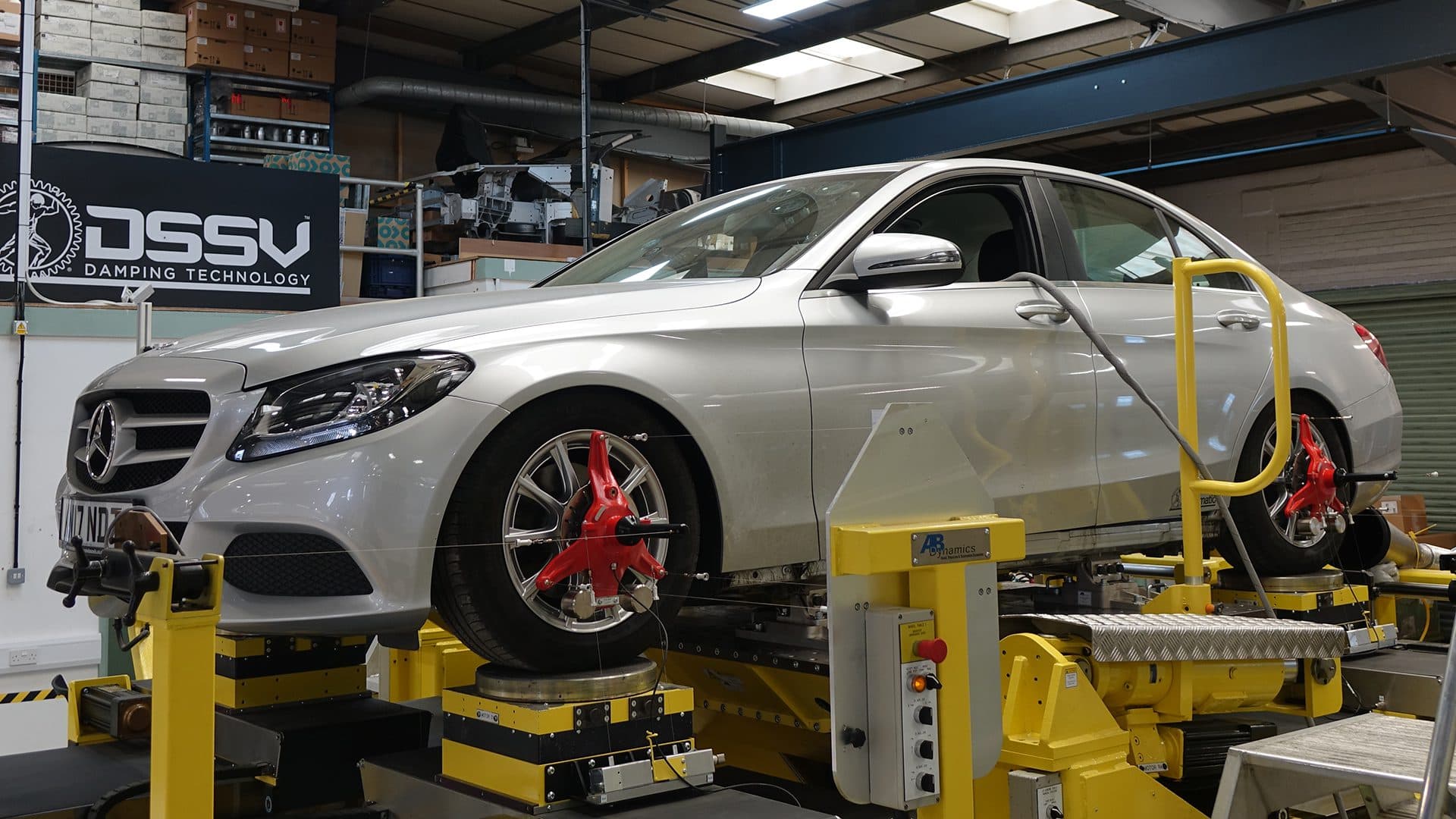

Kinematics & Compliance Test Rig

United Kingdom

  • Full-vehicle K&C testing utilizing Anthony Best Dynamics’ standard processes
  • Live results analysis
  • Detailed processed results provided
  • VI-CRT model generation
  • Complete vehicle access for changes
  • Ability to simulate combined load cases using track data
Jeep on Kinematics and Compliance (K&C) rig

Australia (Asia Pacific)

  • Half-vehicle K&C testing
  • Detailed processed results provided
  • Peak axle load of 3500kg
  • Maximum vehicle mass of 6000kg
  • Wheelbase up to 6000mm



Contact us for more information.
